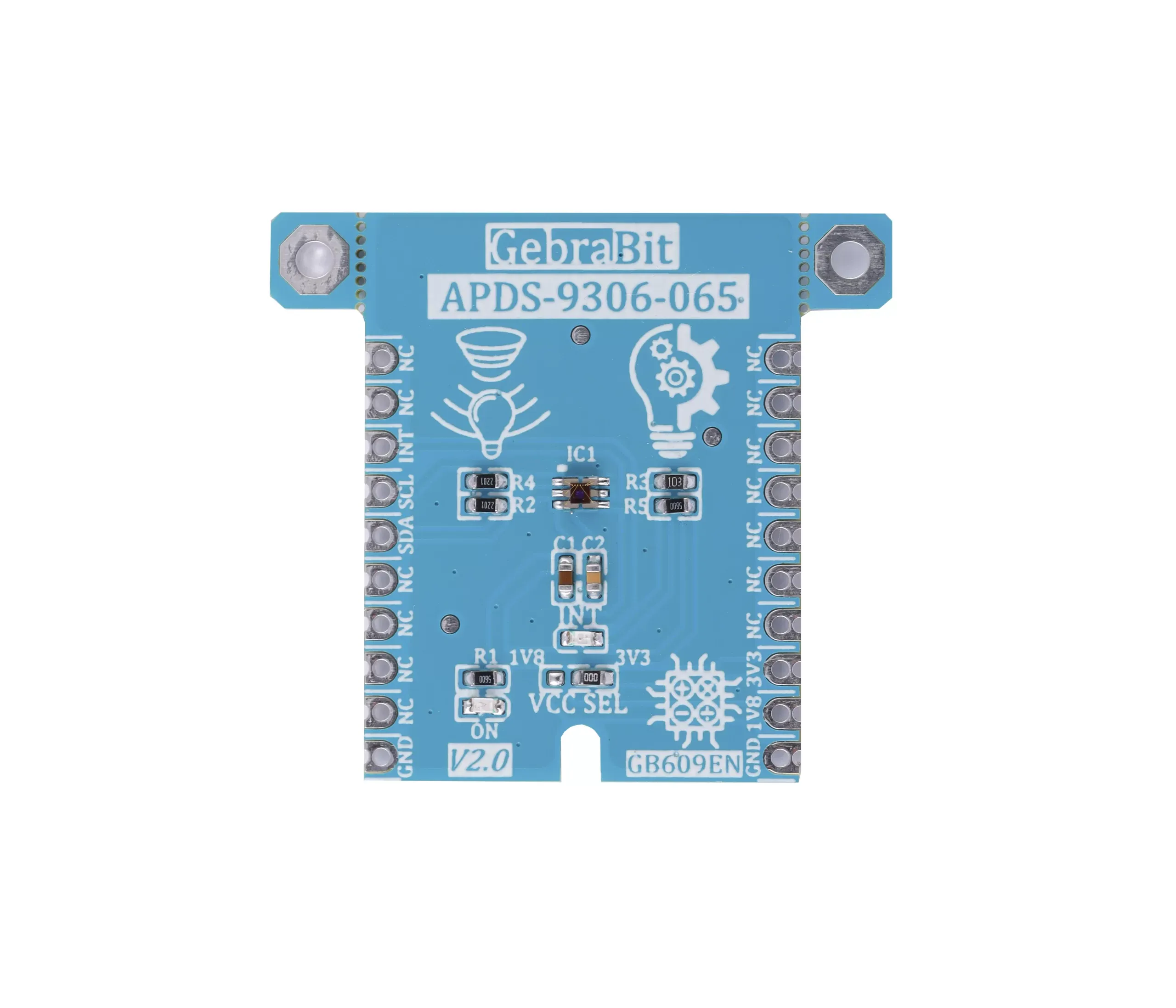

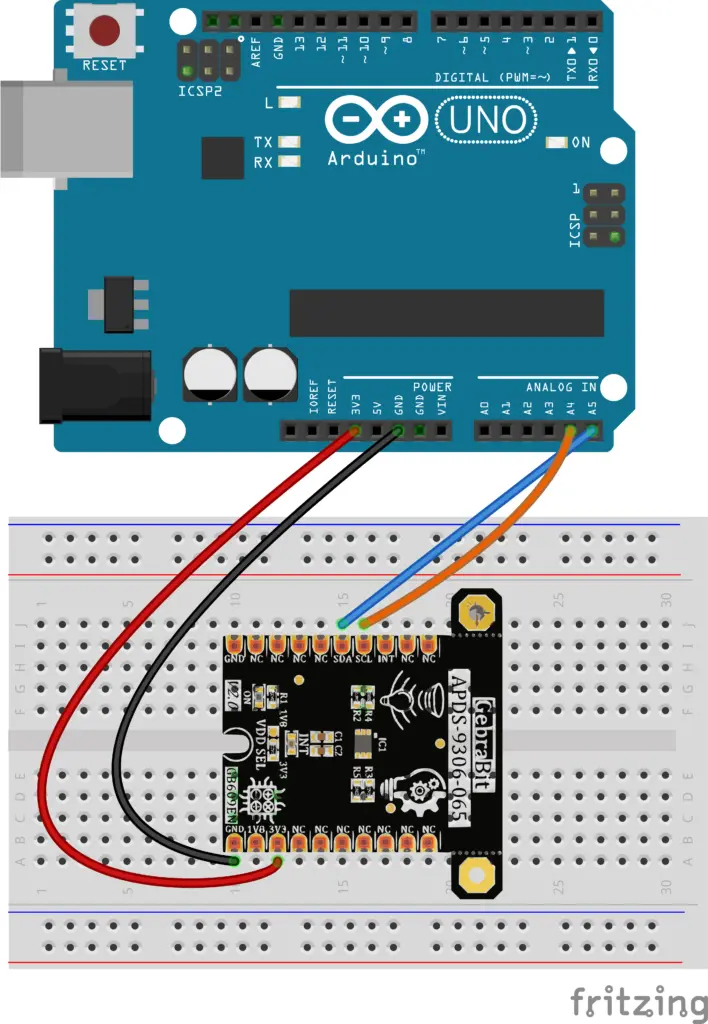

پروژه سنسور APDS-9306 با Arduino

/************************************************
 *              USER REGISTER MAP               *
 ***********************************************/
#define APDS9306_MAIN_CTRL  				0x00
#define APDS9306_ALS_MEAS_RATE  			0x04
#define APDS9306_ALS_GAIN 				    0x05
#define APDS9306_PART_ID 					0x06
#define APDS9306_MAIN_STATUS 				0x07
#define APDS9306_CLEAR_DATA_0 				0x0A
#define APDS9306_CLEAR_DATA_1 				0x0B
#define APDS9306_CLEAR_DATA_2 				0x0C
#define APDS9306_ALS_DATA_0 				0x0D
#define APDS9306_ALS_DATA_1 				0x0E
#define APDS9306_ALS_DATA_2 				0x0F
#define APDS9306_INT_CFG 					0x19
#define APDS9306_INT_PERSISTENCE 			0x1A
#define APDS9306_ALS_THRES_UP_0 			0x21
#define APDS9306_ALS_THRES_UP_1 			0x22
#define APDS9306_ALS_THRES_UP_2 			0x23
#define APDS9306_ALS_THRES_LOW_0 			0x24
#define APDS9306_ALS_THRES_LOW_1 			0x25
#define APDS9306_ALS_THRES_LOW_2 			0x26
#define APDS9306_ALS_THRES_VAR 				0x27
#define APDS9306_ADDRESS 					0x52
/*----------------------------------------------*
 *           USER REGISTER MAP End              *
 *----------------------------------------------*/

 typedef enum Ability
 {
 	Disable = 0 ,
 	Enable
 }APDS9306_Ability;

 typedef enum ALS_Gain
 {
   ALS_GAIN_1X  = 0,
   ALS_GAIN_3X  = 1,
   ALS_GAIN_6X  = 2,
   ALS_GAIN_9X  = 3,
   ALS_GAIN_18X = 4,
 } APDS9306_ALS_Gain;

 typedef enum Interrupt_Channel
 {
 	CLEAR_CHANNEL = 0 ,
 	ALS_CHANNEL
 }APDS9306_Interrupt_Channel;

 typedef enum Resolution
  {
    _20_BIT_400_mS,
    _19_BIT_200_mS,
    _18_BIT_100_mS,
    _17_BIT_50_mS ,
    _16_BIT_25_mS ,
    _13_BIT_3P125_mS
  } APDS9306_ALS_Resolution;

 typedef enum Measurement_Rate
  {
    ALS_MEASRATE_25_mS,
    ALS_MEASRATE_50_mS,
    ALS_MEASRATE_100_mS,
    ALS_MEASRATE_200_mS,
    ALS_MEASRATE_500_mS,
    ALS_MEASRATE_1000_mS,
    ALS_MEASRATE_2000_mS,
 } APDS9306_Measurement_Rate;

typedef enum Data_Status
{
	OLD_DATA = 0 ,
	NEW_DATA
}APDS-9306_Data_Status;

 typedef enum Interrupt_Status
 {
 	INTERRUPT_NOT_FULFILLED = 0 ,
 	INTERRUPT_FULFILLED
 }APDS9306_Interrupt_Status;

 typedef enum Interrupt_Mode
 {
 	ALS_THRESHOLD_INTERRUPT = 0,
 	ALS_VARIATION_INTERRUPT
 }APDS9306_Interrupt_Mode;

 typedef enum Power_Status
 {
 	NO_POWER_ISSUE = 0 ,
 	POWER_ISSUE
 }APDS9306_Power_Status;

typedef enum Interrupt_Persist
{
EVERY_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_2_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_3_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_4_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_5_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_6_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_7_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_8_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_9_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_10_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_11_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_12_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_13_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_14_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_15_ALS_VALUE_OUT_OF_THR_RANGE,
CONSECUTIVE_16_ALS_VALUE_OUT_OF_THR_RANGE,
} APDS-9306_Interrupt_Persist;

typedef enum
{
	FAILED = 0 ,
	DONE
}APDS-9306_Reset_Status;

 typedef	struct APDS9306
  {
  	  uint8_t                         Register_Cache;
  	  uint8_t						  PART_ID;
  	  APDS9306_Reset_Status			  RESET;
  	  APDS9306_Ability                ALS;
  	  APDS9306_ALS_Gain               ALS_GAIN;
  	  float				              ALS_GAIN_VALUE;
  	  APDS9306_Measurement_Rate       MEASUREMENT_RATE;
 	  APDS9306_ALS_Resolution         ALS_RESOLUTION;
 	  float							  ALS_RESOLUTION_TIME;
       APDS9306_Power_Status           POWER_STATUS;
 	  APDS9306_Data_Status            DATA;
 	  APDS9306_Ability                INTERRUPT;
       APDS9306_Interrupt_Channel      INTERRUPT_CHANNEL;
 	  APDS9306_Interrupt_Mode         INTERRUPT_MODE;
       APDS9306_Interrupt_Persist      INTERRUPT_PERSIST;
 	  APDS9306_Interrupt_Status		  INTERRRUPT_STATUS;
 	  uint32_t                        INTERRUPT_UPPER_THRESHOLD;
 	  uint32_t                        INTERRUPT_LOWER_THRESHOLD;
 	  uint8_t 						  REGISTER_DATA[REGISTER_DATA_BUFFER_SIZE];
 	  uint32_t               		  CLEAR_DATA;
 	  uint32_t               		  ALS_DATA;
       float 						  LUMINOSITY;
 }GebraBit_APDS9306;

/********************************************************
 *  Declare Read&Write APDS9306 Register Values Functions *
 ********************************************************/
extern void GB_APDS9306_Read_Reg_Data(uint8_t regAddr,  uint8_t *data)	;
extern void GB_APDS9306_Burst_Read(uint8_t regAddr,  uint8_t *data, uint16_t byteQuantity);
extern void GB_APDS9306_Read_Reg_Bits (uint8_t regAddr, uint8_t start_bit, uint8_t len, uint8_t* data);
extern void GB_APDS9306_Write_Command( uint8_t cmd);
extern void GB_APDS9306_Write_Reg_Data(uint8_t regAddr,  uint8_t data)	;
extern void GB_APDS9306_Burst_Write(uint8_t regAddr,  uint8_t *data, uint16_t byteQuantity)								;
extern void GB_APDS9306_Write_Reg_Bits(uint8_t regAddr, uint8_t start_bit, uint8_t len, uint8_t data);
/********************************************************
 *       Declare APDS9306 Configuration Functions         *
 ********************************************************/
extern void GB_APDS9306_Soft_Reset ( GebraBit_APDS9306 * APDS9306 )  ;
extern void GB_APDS9306_ALS ( GebraBit_APDS9306 * APDS9306 , APDS9306_Ability als );
extern void GB_APDS9306_ALS_Gain ( GebraBit_APDS9306 * APDS9306 , APDS9306_ALS_Gain gain )  ;
extern void GB_APDS9306_Measurement_Repeat_Rate ( GebraBit_APDS9306 * APDS9306 , APDS9306_Measurement_Rate rate )  ;
extern void GB_APDS9306_ALS_Resolution ( GebraBit_APDS9306 * APDS9306 , APDS9306_ALS_Resolution res ) ;
extern void GB_APDS9306_Read_Part_ID ( GebraBit_APDS9306 * APDS9306  )  ;
extern void GB_APDS9306_Read_STATUS ( GebraBit_APDS9306 * APDS9306 )   ;
extern void GB_APDS9306_Interrupt_Channel ( GebraBit_APDS9306 * APDS9306 , APDS9306_Interrupt_Channel intr );
extern void GB_APDS9306_Interrupt_Mode ( GebraBit_APDS9306 * APDS9306 , APDS9306_Interrupt_Mode mode )  ;
extern void GB_APDS9306_Interrupt( GebraBit_APDS9306 * APDS9306 , APDS9306_Ability intpt )  ;
extern void GB_APDS9306_Interrupt_Persist ( GebraBit_APDS9306 * APDS9306 , APDS9306_Interrupt_Persist persist )  ;
extern void GB_APDS9306_Interrupt_Upper_Threshold ( GebraBit_APDS9306 * APDS9306 , uint32_t upthr ) ;
extern void GB_APDS9306_Interrupt_Lower_Threshold ( GebraBit_APDS9306 * APDS9306 , uint16_t lothr )  ;
extern void GB_APDS9306_initialize( GebraBit_APDS9306 * APDS9306 )  ;
extern void GB_APDS9306_Configuration(GebraBit_APDS9306 * APDS9306)  ;
extern void GB_APDS9306_Get_Raw_Data(GebraBit_APDS9306 * APDS9306);
extern void GB_APDS9306_Luminosity_Reading(GebraBit_APDS9306 * APDS9306);
extern void GB_APDS9306_Get_Data(GebraBit_APDS9306 * APDS9306);
#endif

GebraBit_APDS9306 APDS9306;

void setup() {
    Wire.begin();           // Initialize the I2C bus
    Serial.begin(9600);     // Initialize serial communication for debugging

    GB_APDS9306_initialize(&APDS9306); // Initialize the APDS9306 sensor
    GB_APDS9306_Configuration(&APDS9306); // Configure the APDS9306 sensor
}

void loop() {
    GB_APDS9306_Get_Data(&APDS9306); // Read data from the sensor

    Serial.print("luminosity: ");
    Serial.print(APDS9306.LUMINOSITY);
    Serial.println(" lx");

    delay(2000); // Delay between readings
}

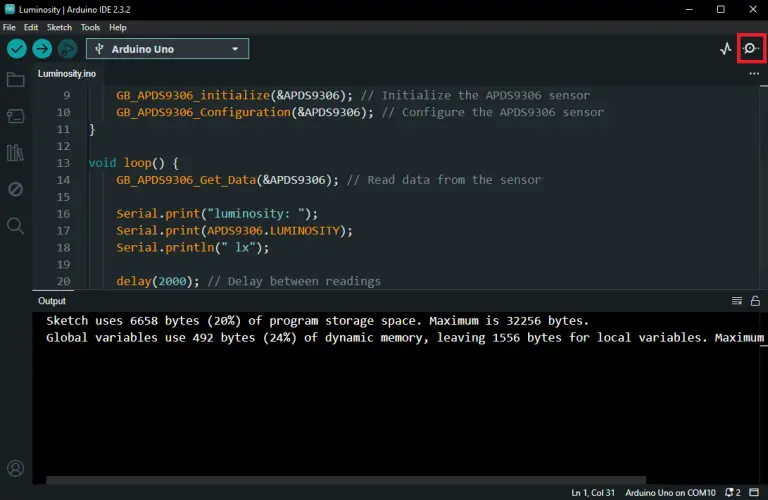

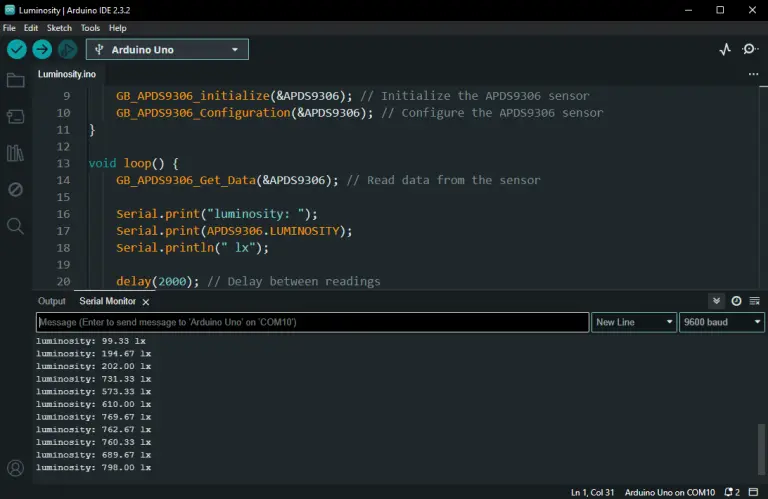

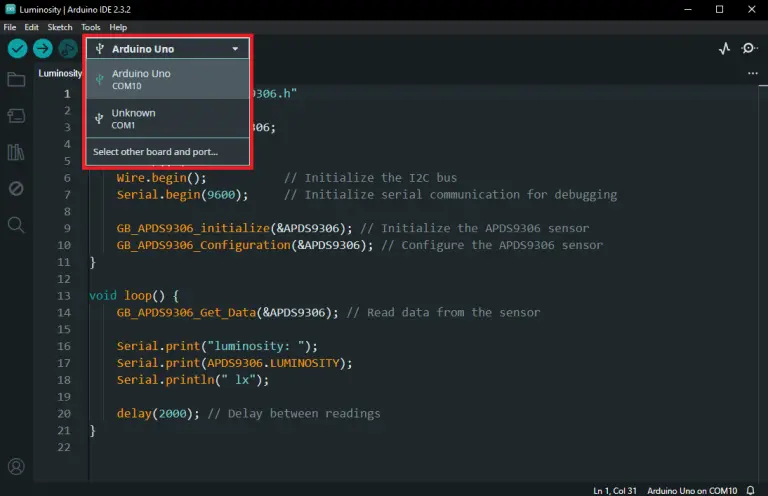

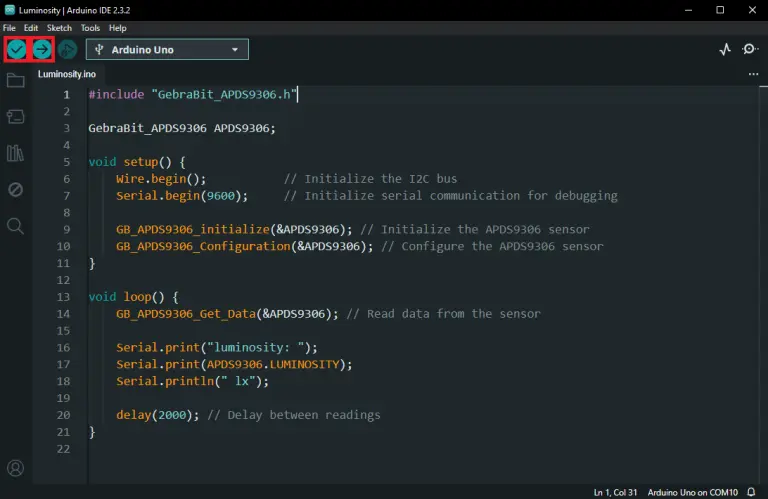

#include "GebraBit_APDS9306.h"

GebraBit_APDS9306 APDS9306;

void setup() {
    Wire.begin();           // Initialize the I2C bus
    Serial.begin(9600);     // Initialize serial communication for debugging

    GB_APDS9306_initialize(&APDS9306); // Initialize the APDS9306 sensor
    GB_APDS9306_Configuration(&APDS9306); // Configure the APDS9306 sensor
}

void loop() {
    GB_APDS9306_Get_Data(&APDS9306); // Read data from the sensor

    Serial.print("luminosity: ");
    Serial.print(APDS9306.LUMINOSITY);
    Serial.println(" lx");

    delay(2000); // Delay between readings
}
