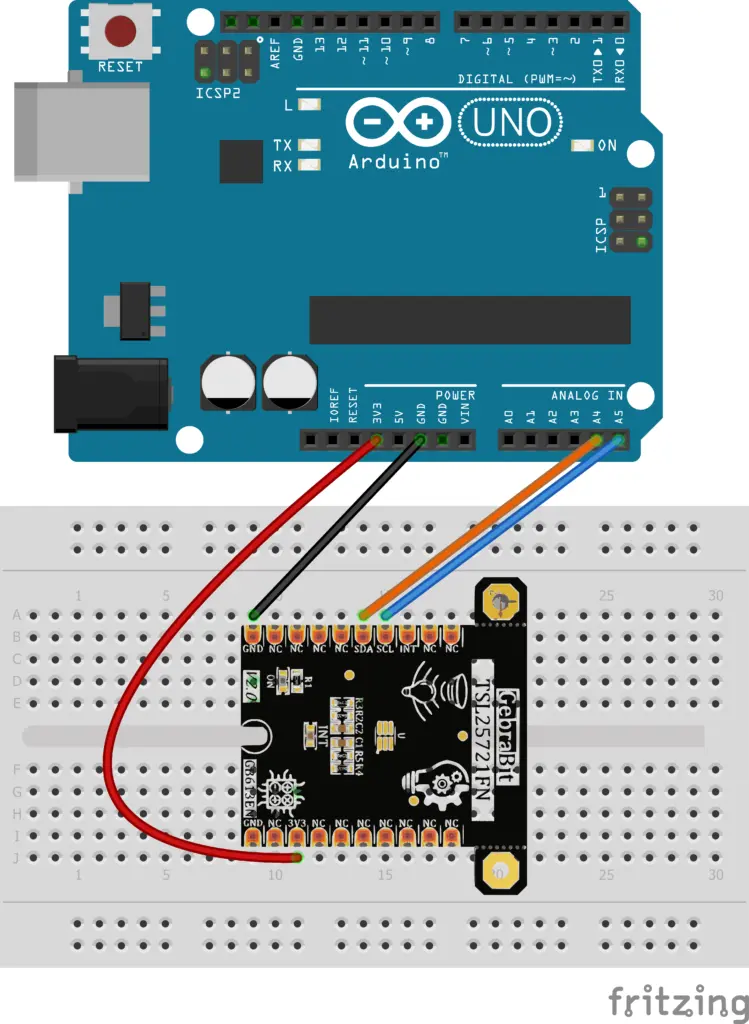

پروژه Arduino با سنسور TSL25721

/************************************************
 *              USER REGISTER MAP               *
 ***********************************************/
#define TSL25721_ADDRESS               0x39
#define TSL25721_ENABLE                0x00
#define TSL25721_ATIME                 0x01
#define TSL25721_WTIME                 0x03
#define TSL25721_AILTL                 0x04
#define TSL25721_AILTH                 0x05
#define TSL25721_AIHTL                 0x06
#define TSL25721_AIHTH                 0x07
#define TSL25721_PERS                  0x0C
#define TSL25721_CONFIG                0x0D
#define TSL25721_CONTROL               0x0F
#define TSL25721_ID                    0x12
#define TSL25721_STATUS                0x13
#define TSL25721_C0DATA                0x14
#define TSL25721_C0DATAH               0x15
#define TSL25721_C1DATA                0x16
#define TSL25721_C1DATAH               0x17
#define TSL25721_ALS_INTERRUPT_CLEAR   0xE6
#define GLASS_ATTENUATION              1.0f  // 1 because in open air
/*----------------------------------------------*
 *           USER REGISTER MAP End              *
 *----------------------------------------------*/

typedef enum ALS_Mode
{
	STANDBY = 0 ,
	ACTIVE
}LTR303ALS_ALS_Mode;

typedef enum
{
	FAILED = 0 ,
	DONE
}TSL25721 _Reset_Status;

 typedef enum ALS_Mode
 {
 	STANDBY = 0 ,
 	ACTIVE
 }TSL25721_ALS_Mode;

 typedef enum ALS_Gain
 {
   ALS_GAIN_1X   = 0 ,
   ALS_GAIN_8X   = 1 ,
   ALS_GAIN_16X  = 2 ,
   ALS_GAIN_120X = 3
 } TSL25721_ALS_Gain;

 typedef enum Integration_Time
 {
   _2P73_mS_INTEGRATION_TIME = 0xFF ,
   _27P3_mS_INTEGRATION_TIME = 0xF6 ,
   _101_mS_INTEGRATION_TIME  = 0xDB ,
   _175_mS_INTEGRATION_TIME  = 0xC0 ,
   _699_mS_INTEGRATION_TIME  = 0x00
 } TSL25721_Integration_Time;

 typedef enum Measurement_Rate
  {
    ALS_MEASRATE_50_mS  ,
    ALS_MEASRATE_100_mS ,
    ALS_MEASRATE_200_mS ,
    ALS_MEASRATE_500_mS ,
    ALS_MEASRATE_1000_mS,
    ALS_MEASRATE_2000_mS,
 } TSL25721 _Measurement_Rate;

typedef enum Data_Status
{
	OLD_DATA = 0 ,
	NEW_DATA
}TSL25721 _Data_Status;

 typedef enum Interrupt_Status
 {
 	INTERRUPT_INACTIVE = 0 ,
 	INTERRUPT_ACTIVE
 }TSL25721_Interrupt_Status;

 typedef enum Data_Valid
 {
 	DATA_IS_INVALID = 0 ,
 	DATA_IS_VALID
 }TSL25721_Data_Valid;

 typedef enum Interrupt_Persist
  {
      EVERY_ALS_CYCLE,
      CONSECUTIVE_1_ALS_VALUE_OUT_OF_THR_RANGE,
      CONSECUTIVE_2_ALS_VALUE_OUT_OF_THR_RANGE,
      CONSECUTIVE_3_ALS_VALUE_OUT_OF_THR_RANGE,
      CONSECUTIVE_5_ALS_VALUE_OUT_OF_THR_RANGE,
      CONSECUTIVE_10_ALS_VALUE_OUT_OF_THR_RANGE,
  	CONSECUTIVE_15_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_20_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_25_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_30_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_35_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_40_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_45_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_50_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_55_ALS_VALUE_OUT_OF_THR_RANGE,
 	CONSECUTIVE_60_ALS_VALUE_OUT_OF_THR_RANGE,
 } TSL25721_Interrupt_Persistence;

 typedef	struct TSL25721
  {
  	  uint8_t                         Register_Cache;
  	  uint8_t			              PART_ID;
  	  TSL25721_Ability 				  ALS;
  	  TSL25721_Ability                OSCILLATOR;
  	  TSL25721_Ability 				  WAIT_TIMER;
  	  TSL25721_Ability	              WAIT_LONG_12X;
  	  float				              WAIT_TIME_mS;
 	  uint8_t						  WAIT_TIME;
 	  float				              WAIT_TIME_STEP;
 	  TSL25721_Ability                INTERRUPT;
 	  TSL25721_Ability			      SLEEP_AFTER_INTERRUPT;
 	  float							  INTEGRATION_TIME_mS;
 	  uint8_t						  INTEGRATION_TIME;
 	  float				              INTEGRATION_TIME_STEP;
 	  TSL25721_Ability                ALS_GAIN_0P16_SCALE;
 	  TSL25721_ALS_Gain               ALS_GAIN;
 	  float		 					  ALS_GAIN_VALUE;
 	  uint8_t			              STATUS_VALUE;
       TSL25721_Interrupt_Status		  INTERRRUPT_STATUS;
       TSL25721_Data_Valid             DATA;
       TSL25721_Interrupt_Persistence  INTERRUPT_PERSISTENCE;
 	  uint16_t                        INTERRUPT_LOW_THRESHOLD;
 	  uint16_t                        INTERRUPT_HIGH_THRESHOLD;
 	  uint8_t 						  ADC_DATA[ADC_DATA_BUFFER_SIZE];
 	  uint16_t                        ALS_DATA_CH0;//Reference to uint16_t where visible+IR data will be stored
 	  uint16_t               		  ALS_DATA_CH1;//Reference to uint16_t where IR-only data will be stored
 	  float      					  COUNTER_PER_LUX;
 	  double 			              ALS_LUX;
 }GebraBit_TSL25721;

 extern void GB_TSL25721_Read_Reg_Data(uint8_t regAddr,  uint8_t *data)	;
  extern void GB_TSL25721_Burst_Read(uint8_t regAddr,  uint8_t *data, uint16_t byteQuantity);
  extern void GB_TSL25721_Read_Reg_Bits (uint8_t regAddr, uint8_t start_bit, uint8_t len, uint8_t* data);
  extern void GB_TSL25721_Write_Command( uint8_t cmd);
  extern void GB_TSL25721_Write_Reg_Data(uint8_t regAddr,  uint8_t data)	;
  extern void GB_TSL25721_Burst_Write(uint8_t regAddr,  uint8_t *data, uint16_t byteQuantity)								;
  extern void GB_TSL25721_Write_Reg_Bits(uint8_t regAddr, uint8_t start_bit, uint8_t len, uint8_t data);
  /********************************************************
   *       Declare TSL25721 Configuration Functions         *
  ********************************************************/
 extern void GB_TSL25721_Internal_Oscillator ( GebraBit_TSL25721 * TSL25721 , TSL25721_Ability osc )  ;
 extern void GB_TSL25721_ALS ( GebraBit_TSL25721 * TSL25721 , TSL25721_Ability als )  ;
 extern void GB_TSL25721_Interrupt ( GebraBit_TSL25721 * TSL25721 , TSL25721_Ability intr )  ;
 extern void GB_TSL25721_Clear_Interrupt ( GebraBit_TSL25721 * TSL25721 )  ;
 extern void GB_TSL25721_Sleep_After_Interrupt ( GebraBit_TSL25721 * TSL25721 , TSL25721_Ability intafs )  ;
 extern void GB_TSL25721_Wait_Timer ( GebraBit_TSL25721 * TSL25721 , TSL25721_Ability timer ) ;
 extern void GB_TSL25721_Integration_Time  (GebraBit_TSL25721 * TSL25721 ,float time ) ;
 extern void GB_TSL25721_Wait_Long_12x ( GebraBit_TSL25721 * TSL25721 , TSL25721_Ability wlong )  ;
 extern void GB_TSL25721_Check_Wait_Long_12x ( GebraBit_TSL25721 * TSL25721  )   ;
 extern void GB_TSL25721_Set_Wait_Time ( GebraBit_TSL25721 * TSL25721 , float wait  );
 extern void GB_TSL25721_ALS_Gain_0p16_Scale ( GebraBit_TSL25721 * TSL25721 , TSL25721_Ability scale )  ;
 extern void GB_TSL25721_Check_ALS_Gain_0p16_Scale( GebraBit_TSL25721 * TSL25721  ) ;
 extern void GB_TSL25721_ALS_Gain ( GebraBit_TSL25721 * TSL25721 , TSL25721_ALS_Gain gain );
 extern void GB_TSL25721_Read_Part_ID ( GebraBit_TSL25721 * TSL25721  );
 extern void GB_TSL25721_Read_STATUS ( GebraBit_TSL25721 * TSL25721 ) ;
 extern void GB_TSL25721_Interrupt_Persistence ( GebraBit_TSL25721 * TSL25721 , TSL25721_Interrupt_Persistence persist ) ;
 extern void GB_TSL25721_Interrupt_Upper_Limitation ( GebraBit_TSL25721 * TSL25721 , uint16_t limit );
 extern void GB_TSL25721_Interrupt_Lower_Limitation ( GebraBit_TSL25721 * TSL25721 , uint16_t limit )  ;
 extern void GB_TSL25721_initialize( GebraBit_TSL25721 * TSL25721 )  ;
 extern void GB_TSL25721_Configuration(GebraBit_TSL25721 * TSL25721)  ;
 extern void GB_TSL25721_Read_CH0_CH1_Raw_Data(GebraBit_TSL25721 * TSL25721);
 extern void GB_TSL25721_Lux_Reading(GebraBit_TSL25721 * TSL25721);
 extern void GB_TSL25721_Get_Data(GebraBit_TSL25721 * TSL25721);

GebraBit_TSL25721 TSL25721;

void setup() {
    Wire.begin();           // Initialize the I2C bus
    Serial.begin(9600);     // Initialize serial communication for debugging

    GB_TSL25721_initialize(&TSL25721); // Initialize the TSL25721 sensor
    GB_TSL25721_Configuration(&TSL25721); // Configure the TSL25721 sensor
}

void loop() {
    GB_TSL25721_Get_Data(&TSL25721); // Read data from the sensor

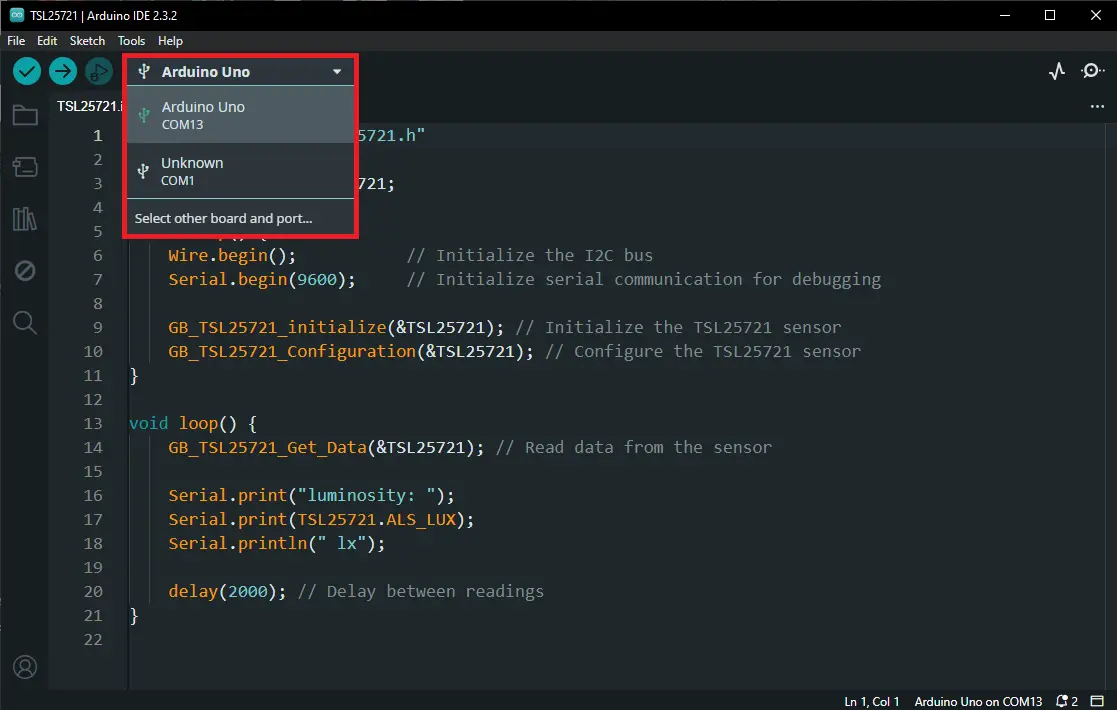

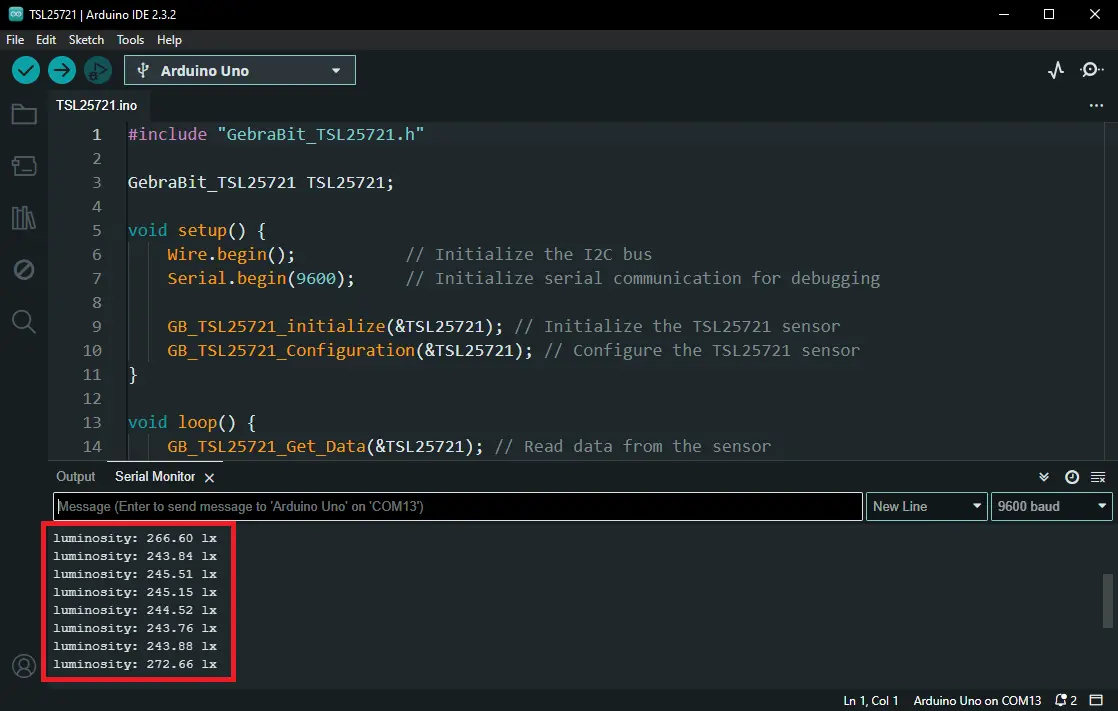

    Serial.print("luminosity: ");
    Serial.print(TSL25721.ALS_LUX);
    Serial.println(" lx");

    delay(2000); // Delay between readings
}

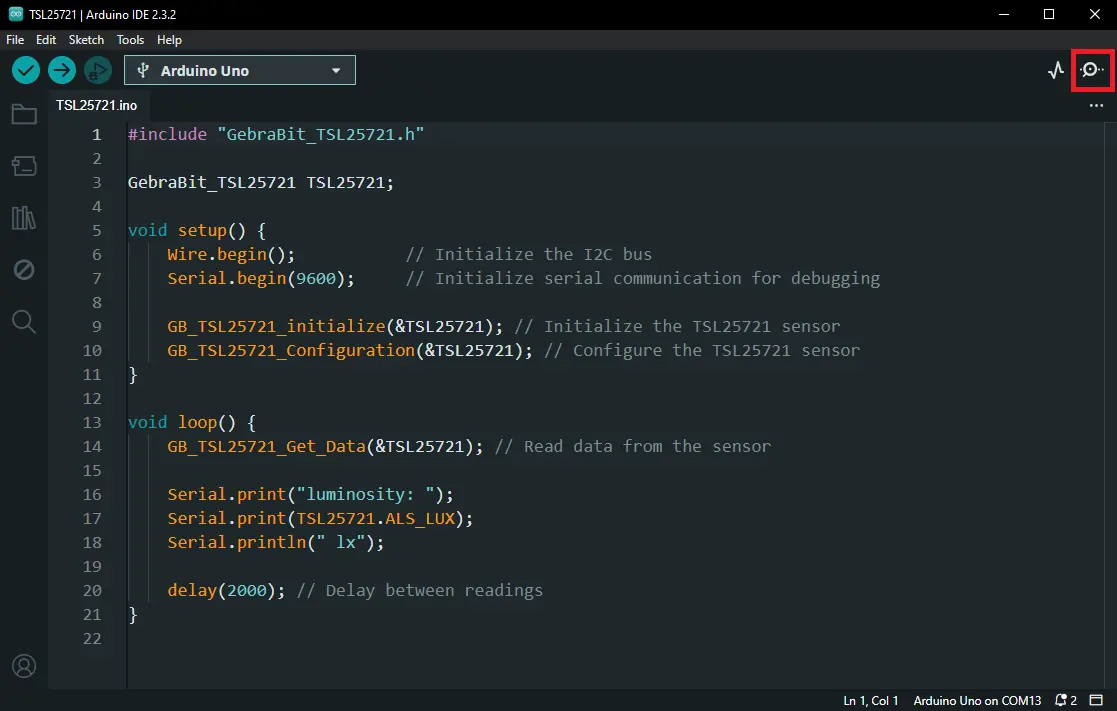

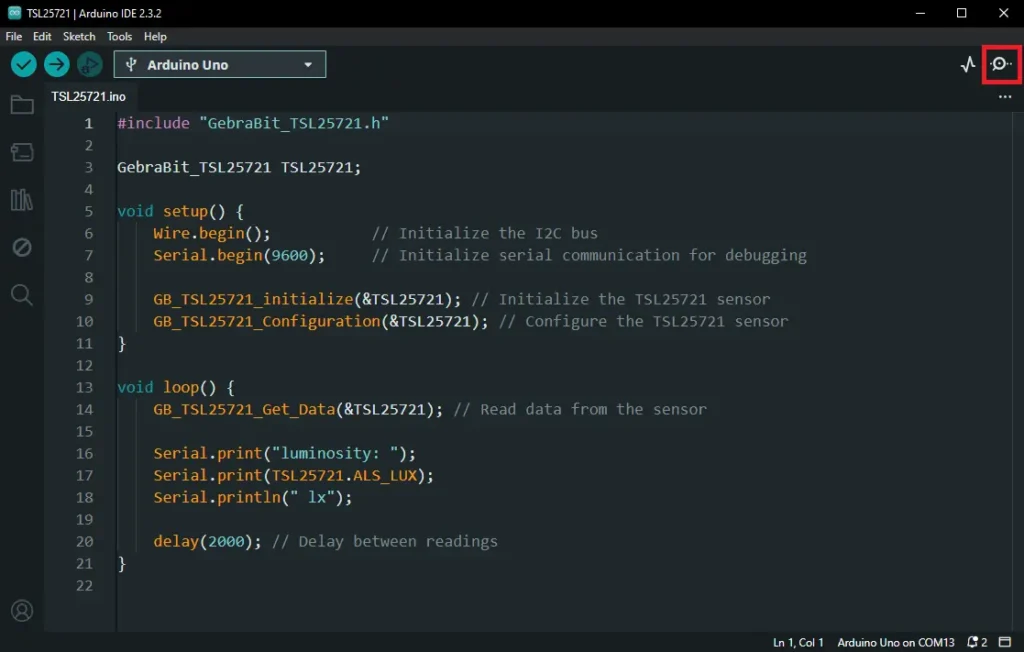

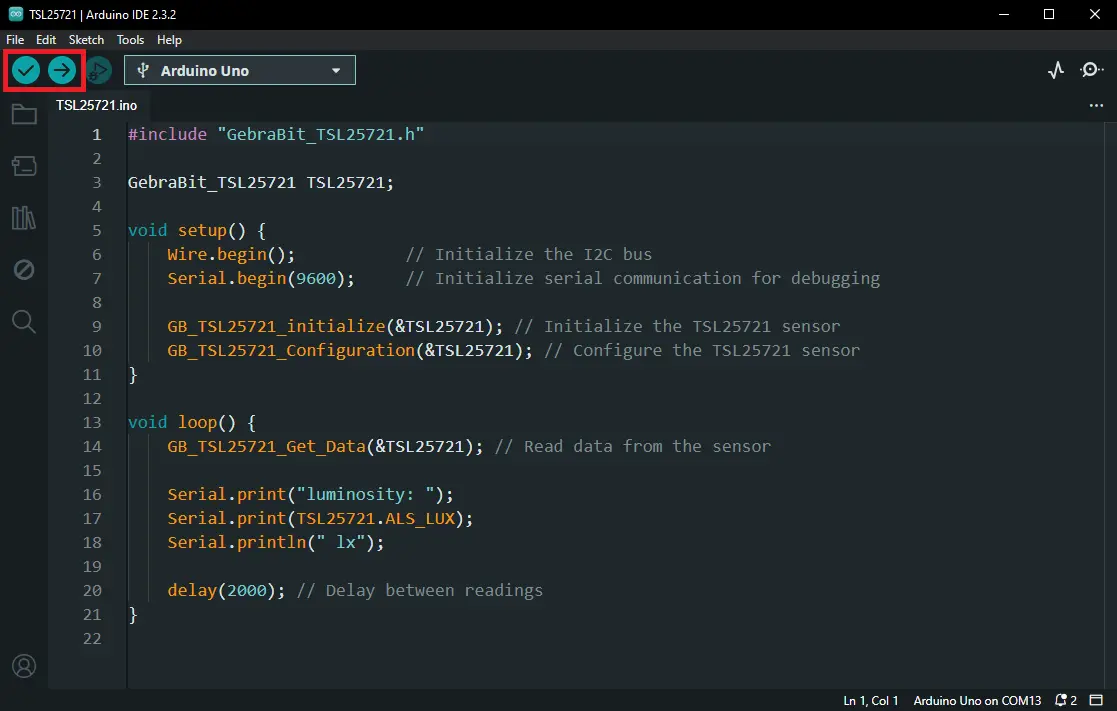

#include "GebraBit_TSL25721.h"

GebraBit_TSL25721 TSL25721;

void setup() {
    Wire.begin();           // Initialize the I2C bus
    Serial.begin(9600);     // Initialize serial communication for debugging

    GB_TSL25721_initialize(&TSL25721); // Initialize the TSL25721 sensor
    GB_TSL25721_Configuration(&TSL25721); // Configure the TSL25721 sensor
}

void loop() {
    GB_TSL25721_Get_Data(&TSL25721); // Read data from the sensor

    Serial.print("luminosity: ");
    Serial.print(TSL25721.ALS_LUX);
    Serial.println(" lx");

    delay(2000); // Delay between readings
}
